Ultrasound Theraphy Machines

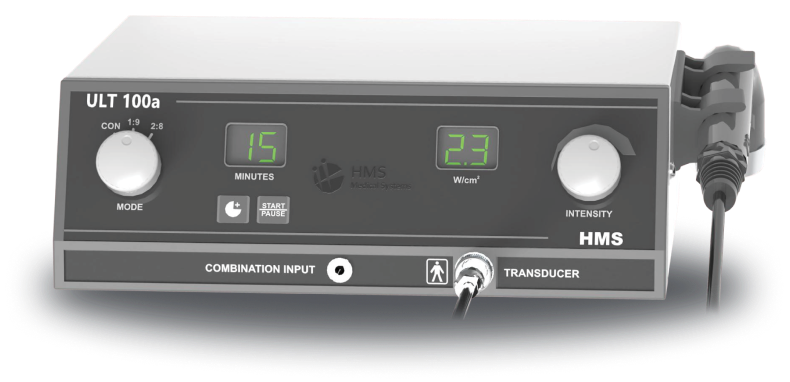

ULT® 100a
ULT® 100a is a microcontroller-based 1 MHz ultrasound therapy machine with continuous and pulsed output modes, digital display of intensity (W/cm²) and treatment time, and provision for combination therapy. Operating at up to 2.5 W/cm² with two pulsed ratios (1:9 and 2:8 at 100 Hz) and a 99-minute timer, it delivers focused single-frequency ultrasound in a compact 1.5 kg unit. Designed for physiotherapy clinics, hospitals and rehabilitation centres that need a straightforward, lightweight 1 MHz ultrasound machine with combination therapy capability.
1 MHz Ultrasound
Continuous & Pulsed Modes
Combination Therapy Ready
Digital Intensity Display
0.1–2.5 W/cm²
IEC 60601-1 Certified
Dual-Frequency Ultrasound Control & Clinical Performance
ULT® 100a delivers focused 1 MHz ultrasound with continuous/pulsed output, combination therapy provision and digital intensity display in the lightest form factor (1.5 kg) across the HMS ultrasound range.
1 MHz & 3 MHz from Single Transducer
Delivers both 1 MHz (deeper tissue penetration) and 3 MHz (superficial tissue targeting) ultrasound from a single water-resistant transducer. Frequency selection is made directly on the 7-inch touch display. Standard 5 cm² ERA transducer is included; an optional 1 cm² small-area transducer is available for treating confined anatomical areas. A static ultrasound transducer is also available for hands-free applications.
47 Evidence-Based Pre-Programs
Pre-loaded with 47 evidence-based treatment protocols that auto-configure frequency (1/3 MHz), output mode (continuous/pulsed), pulse rate, duty cycle and intensity for specific clinical applications. Reduces manual setup time and standardises treatment parameters across clinical staff. Additionally, 30 re-writable user memory positions allow physiotherapists to save and recall custom parameter combinations.
3 Pulse Rates & 9 Duty Cycle Settings
Offers three selectable pulse rates — 16 Hz, 48 Hz and 100 Hz — with 9 pulsed duty cycle options (10%, 20%, 30%, 40%, 50%, 60%, 70%, 80% and 90%). This combination provides 27 distinct pulsed output configurations plus continuous mode, giving physiotherapists significantly more control over pulsed ultrasound delivery than single pulse-rate models in the HMS range.
7-Inch Colour Touch Display
The largest display in the HMS ultrasound range — a 7-inch colour touch screen shows all active parameters including frequency, output mode, pulse settings, intensity (0.1–3 W/cm²), timer (1–99 minutes) and contact sensor status. Touch-based navigation provides direct access to protocol selection, manual parameter adjustment and user memory functions.
Contact Control Sensor
A built-in contact control sensor monitors transducer-to-skin contact during treatment. When contact becomes insufficient, the system automatically suspends ultrasound output — resuming when proper contact is restored. A contact sensor indicator on the transducer itself provides visual feedback of contact status. This prevents ultrasound output into air and ensures energy delivery only when the transducer is properly coupled to the treatment area.
1.7 kg Clinical Build with Collimated Beam
Delivers a collimated ultrasound beam with a beam non-uniformity ratio of 5:1 (max). Housed in a compact unit measuring 28 × 22 × 9 cm and weighing 1.7 kg. Energy-efficient design with universal mains input (100–240V, 50/60 Hz). Certified to IEC 60601-1 (Class I, Type BF). Also designed for veterinary care. Manufactured by HMS Medical Systems.
Engineered for Excellence
Explore the key features, technical specifications, and applications designed to deliver reliability, efficiency, and versatility across a wide range of treatments.
- Continuous and pulsed ultrasound
- Digital display of treatment time
- Provision for combination therapy
- Digital display of applied intensity
- Compact and light weight
- Non thermal effect
- Built in digital circuit and control all functions
- Model : ULT 100a
- Operation Mode : Electrical
- Usage : Clinical, Hospital, Personal
- Ultrasound Frequency: 1 MHz
- Ultrasound Output Modes: Continuous / Pulsed
- ntensity: 0.1 – 2.5 W / cm2(max)
- Timer: 0 – 99 mins with set +, start facility
- Display: Power output W/cm2
- Pules Duration / Frequency: 1:9 & 2:8 @ 100 Hz
- Mains Voltage – 100 – 240V / 50 or 60 Hz
- Safety Class – Class I, Type BF (IEC 60601 -1)
- Dimensions – L x B x H – 20 x 24 x 8 cms
- Weight – 1.5 Kgs
Accessories for ULT® 100a
Genuine accessories designed to ensure optimal performance. hygiene and durability.
Frequently bought together
HMS Box trolley
HMS Box Trolley is strong and durable in construction, made using high quality metal materials. It features a powder coated MS frame that ensures long lasting performance and easy maintenance. Designed for smooth movement, the trolley is fitted with caster wheels with brake support for safety and stability. The box trolley is detachable for convenient shipping and storage. It comes with a closed accessories storage design that helps keep equipment organised and protected during use. Built to handle regular clinical and hospital requirements, the HMS Box Trolley offers reliable support and ease of handling in everyday operations.
- MS powder coated frame
- Fitted with caster wheel with break
- Detachable for shipping
- Accessories storage is closed
- Can withstand upto 15kgs
- Trolley height 96cm
- Tray length 52cm width 46cm
- Model : Box Type Trolley
- Operation Mode : Manual
- Usage : Clinical, Hospital, Persona
Product Enquiry
Fill in the form below and we’ll be in touch within 2–3 business days.
Model Comparison of HMS Ultrasound Therapy Machines
| ULT® 100a | INDOSONIC® 102n | DIGISONIC® 2s | DIGISONIC® 3n | |
|---|---|---|---|---|
| Frequency – 1MHz | [yes] | [yes] | [yes] | [yes] |
| Frequency – 3MHz | [no] | [no] | [yes] | [yes] |
| Pulse freq. 100Hz | [yes] | [yes] | [yes] | [yes] |
| Pulse freq. 16Hz | [no] | [no] | [no] | [yes] |
| Pulse freq. 48Hz | [no] | [no] | [no] | [yes] |
| Pulse Ratio | 2:8 & 1:9 | 1:9, 2:8. 4:4 & 1:1 | 10% – 90% (10% step) | 10% – 90% (10% step) |
| Probe (Scm7) | [yes] | [yes] | [yes] | [yes] |
| Probe (lcmi) (optional) | [no] | [yes] | [yes] | [yes] |
| Static probe | [no] | [yes] | [yes] | [yes] |
| Head warming | [no] | [no] | [no] | [yes] |
| Cmtact | [no] | [no] | [no] | [yes] |
| Output power | 2.5 W/cm² | 3 W/cm² | 3 W/cm² | 3 W/cm² |
| Display | LED | LED | LCD | LCD TOUCH |
