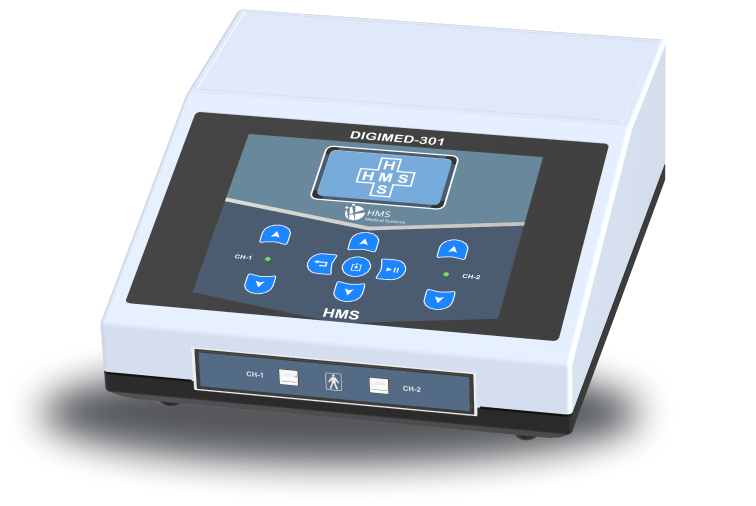

Digimed-301

IFT + Russian + TENS

55 Pre-Set Protocols

DSP-Based Circuitry

Dual Carrier Frequency

30 User Memory Slots

IEC 60601-1 Certified

Precision Ultrasound Therapy, Redefined

Advanced 1 & 3 MHz ultrasound system with smart contact control, touchscreen interface, and customizable therapy programs for safe, effective, and modern rehabilitation.

Advanced IFT Control & Clinical Performance

DIGIMED® 301 brings computerised control to three electrotherapy modalities — IFT, Russian Current and TENS — with DSP-driven output accuracy, 55 pre-set protocols and a future-upgradeable hardware platform designed for long-term clinical use.

3-Modality Electrotherapy Output

Combines Interferential Therapy (four-pole classic, four-pole vector 90°, four-pole vector 45°, two-pole pre-modulated), Russian Current (2500 Hz carrier, 50–250 Hz burst, constant/surge) and TENS (2–250 Hz, continuous/burst modes) into a single clinical unit — covering both medium-frequency and low-frequency electrotherapy requirements.

Dual Carrier Frequency — 2000 Hz / 4000 Hz

Operates at both 2000 Hz and 4000 Hz carrier frequencies with a base frequency range of 1–150 Hz (1 Hz step) and sweep frequency of 1–150 Hz (1 Hz step). Sweep modulation programs include 1/1S, 1/5, 1/5S and 6/6S for varied stimulation patterns during IFT sessions.

55 Pre-Set Condition-Wise Protocols

Pre-programmed with 55 treatment protocols organised by clinical condition. Each protocol auto-configures the appropriate modality, frequency, sweep and timing parameters. Physiotherapists can also save custom settings to 30 user memory locations and recall them by patient name for repeat sessions.

DSP-Based Circuitry — 100% Output Accuracy

Digital Signal Processing (DSP) circuitry ensures the set output parameters are delivered with 100% accuracy across all three modalities. This eliminates analogue drift and provides consistent, repeatable output current (0–100 mA) session after session.

Large Graphic LCD & 5-Key Operation

A large graphic LCD display (128×64 resolution) shows all active parameters — current type, therapy mode, frequency, sweep, intensity and timer. Five soft-touch keys handle all navigation and parameter adjustments, keeping the interface simple for daily clinical use.

Future-Upgradeable & Safety Certified

Hardware platform supports future software upgrades without physical component changes — extending the useful life of the equipment as new protocols or modalities become available. Includes an advanced patient safety system with automatic cable and electrode fault detection. Certified to IEC 60601-1 (Class 1, Type BF). Also designed for veterinary care applications.

Engineered for Performance

Key features of DIGIMED 301 — from multi-modality output and channel independence to display, safety and build quality.

Features
  • International standards and specifications
  • 55 pre-programme condition wise with protocols
  • Cable and electrodes checking mode
  • User settable memory
  • Light weight and compact design
  • Easy to operate
  • Built in rechargeable battery
  • DSP based circuitry outputs are in 100 % accuracy
  • Large graphic LCD display
  • Advanced patient safety system
  • Also designed for veterinary care
  • Model : DIGIMED 301
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
Specifications
  • Carrier frequency – 2000 Hz / 4000 Hz
  • Base frequency – 1-150 Hz (1 Hz step)
  • Sweep frequency – 1-150 Hz (1 Hz step)
  • Timer – 0 – 60 mins
  • weep Modulation
  • Programs – 1 /1S, 1/5, 1/5S, 6/6S
  • Output current – 0 – 100 mA
  • Therapy Modes – Four pole Interferential, Four pole Vector 90°, Four pole Vector 45°, Two pole pre-modulated
Technical Data
  • Mains voltage – 90-270v/50/60hz
  • Safety class – Class 1, Type BF (IEC60601-1)
  • DIMENSIONS – Lxbxh – 30x25x10.5 cms
  • Weight – 2.5 kgs

Accessories for DIGIMED 301

Genuine accessories designed to ensure optimal performance. hygiene and durability.

USB Cable (2 m)

USB Cable (2 m)

2-metre USB data cable for connecting HMS equipment to PC for software updates and data transfer.

Big Rubber Electrode (4 mm hole)

Big Rubber Electrode (4 mm hole)

Large reusable carbon rubber electrode with 4 mm connector hole for IFT and stimulator use.

Medium Rubber Electrode (2 mm hole)

Medium Rubber Electrode (2 mm hole)

Mid-sized reusable carbon rubber electrode with 2 mm connector hole for versatile placement.

Rubber Electrode 301 (2 mm hole)

Rubber Electrode 301 (2 mm hole)

Reusable rubber electrode with 2 mm hole designed for use with HMS DIGIMED 301 IFT units.

Medium Pouch Electrode Hole (2 mm)

Medium Pouch Electrode Hole (2 mm)

Mid-sized fabric pouch electrode cover with 2 mm connector for moist electrode applications.

Vaginal Electrode

Vaginal Electrode

Specialised internal electrode designed for pelvic floor muscle stimulation and biofeedback applications.

ANAL-ELECTRODE

Anal Electrode

Specialised internal electrode designed for pelvic floor stimulation and incontinence management applications.

Frequently bought together

Explore products that match your needs. Built for performance and reliability.

Why we suggest this

A practical solution that combines quality, performance, ease of use, and value. Designed to meet everyday requirements with reliable performance and user-friendly operation.

Strong & Durable Build

High quality MS frame

Smooth Mobility

Faster wheels with brake support

RECOMMENDED

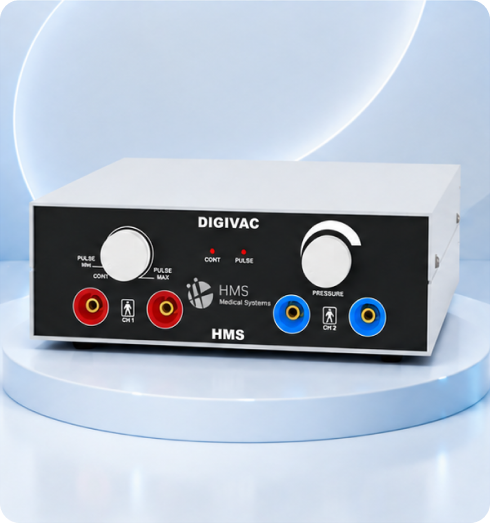

HMS DIGIVAC

HMS DIGIVAC is a versatile vacuum and pressure therapy unit with adjustable pulse and pressure settings. Designed with dual-channel operation for flexible and easy clinical use.

High Load
Capacity

Powder Coated

Low
Maintenance

₹44,880.00 (excl. GST) + shipping chargesRead more

Frequently bought together

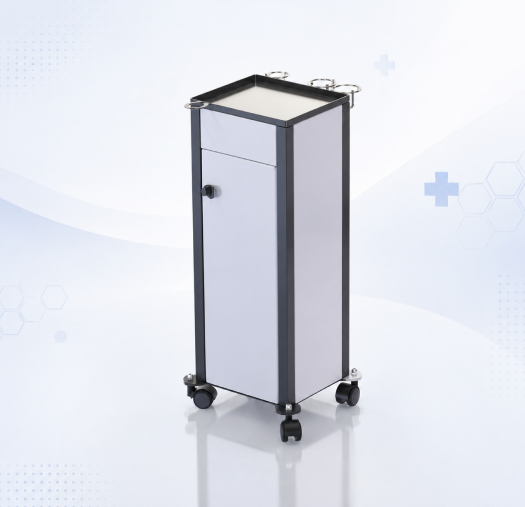

Box Trolly

HMS Box trolley

HMS Box Trolley is strong and durable in construction, made using high quality metal materials. It features a powder coated MS frame that ensures long lasting performance and easy maintenance. Designed for smooth movement, the trolley is fitted with caster wheels with brake support for safety and stability. The box trolley is detachable for convenient shipping and storage. It comes with a closed accessories storage design that helps keep equipment organised and protected during use. Built to handle regular clinical and hospital requirements, the HMS Box Trolley offers reliable support and ease of handling in everyday operations.

HMS Box trolley
  • MS powder coated frame
  • Fitted with caster wheel with break
  • Detachable for shipping
  • Accessories storage is closed
  • Can withstand upto 15kgs
  • Trolley height 96cm
  • Tray length 52cm width 46cm
Model and Usage
  • Model : Box Type Trolley
  • Operation Mode : Manual
  • Usage : Clinical, Hospital, Persona

Product Enquiry

Fill in the form below and we’ll be in touch within 2–3 business days.

    Our Range of Interferential Therapy Equipment

    Explore the complete HMS range of IFT and electrotherapy equipment — from portable pocket devices to advanced multi-channel clinical systems.

    UNISTIM 5n
    UNISTIM 5s
    UNISTIM 5s
    COMBOSTIM
    COMBOSTIM
    INDOMED D
    INDOMED D

    Model Comparison of HMS Interferential Therapy Equipment

    INDOMED® DDIGIMED® 301UNISTIM® 5sCOMBOSTIM
    INTERFERENTIAL[yes][yes][yes][yes]
    Carrier frequency2,4,6,8,10 KHz2000Hz / 4000Hz2000Hz / 4000Hz4000Hz
    Base frequency1 – 150Hz (1 Hz step)1 – 150Hz (1 Hz step)1 – 250Hz (1 Hz step)150Hz
    Sweep frequency0 -150 Hz (1 Hz step)1 -150 Hz (1 Hz step)0 – 250 Hz (1 Hz step)150Hz
    Sweep modulation[yes][yes][yes][yes]
    Programs1/1S, 5/1/5S, 6/6S1/1S, 5/1/5S, 6/6S1/1S, 5/1/5S, 6/6SPreset values
    Therapy modesFour pole Interferential, Four pole vector 90°, Four pole vector 45°, Two pole pre-modulated.Four pole Interferential, Four pole vector 90°, Four pole vector 45°, Two pole pre-modulated.Four pole Classic, Four pole vector 90°, Four pole vector 45°, Two pole pre-modulated.Four pole interferential – 5 pre-sets, two pole pre-modulated – 5 pre-sets.

    RUSSIAN CURRENT[no][yes][yes][no]
    Frequency[no]2500Hz2500Hz[no]
    Ramp rise/fall[no]1 -10 sec (1 sec step)1 -10 sec (1 sec step)[no]
    Burst[no]50 – 250 Hz (10Hz step)30 – 250 Hz (10Hz step)[no]
    Hold on[no]1 -99 sec (1 sec step)1 -99 sec (1 sec step)[no]
    Hold off[no]1 -99 sec (1 sec step)1 -99 sec (1 sec step)[no]

    MUSCLE STIMULATOR CURRENTS[no][no][yes][yes]
    Plain galvanic[no][no]Continuous DC current[no]
    Int. galvanic[no][no]Diagnostic & therapeutic5 Pre-sets
    FARADIC[no][no][yes][yes]
    Freq. / p.width[no][no]50Hz/0.7 msec50Hz/0.7 msec
    SURGE FARADIC
    Surge on time[no][no]1 -10 sec (1 sec step)5 Pre-set
    Surge off time[no][no]1 – 10 sec (1 sec step)5 Pre-set

    SURGE FARADIC[no][no][no][no]
    Surge on[no][no][no][no]

    TENS[no][yes][yes][yes]
    Frequency[no]2 – 250 Hz2 – 250 HzUpto 250Hz
    Pulse width[no]20 -250 sec20 -400 μsec[no]
    Burst frequency[no]1 – 10Hz1 – 10Hz[no]
    Program[no][no]77 pre-sets10 pre-sets

    Ultra reiz[no][no][yes][no]
    ON time[no][no]2 msec[no]
    OFF time[no][no]5 msec[no]

    LOW FREQUENCY ALTERNATING CURRENT[no][no][yes][no]
    Diadynamic currents[no][no]DF, MF, CP, LP, RS, MM[no]

    Timer0 – 99 mins0 – 99 mins[no]0 – 99 mins
    DisplayLCD 4×20LCD 128×645″ Color TFTLCD customized
    Output current0 – 100mA0 – 100mA[no]0 – 60 mA
    Memory103030[no]
    PowerMains (100 -240V)Mains (100 -240V)Mains (100 -240V)Mains (100 -240V) +Battery
