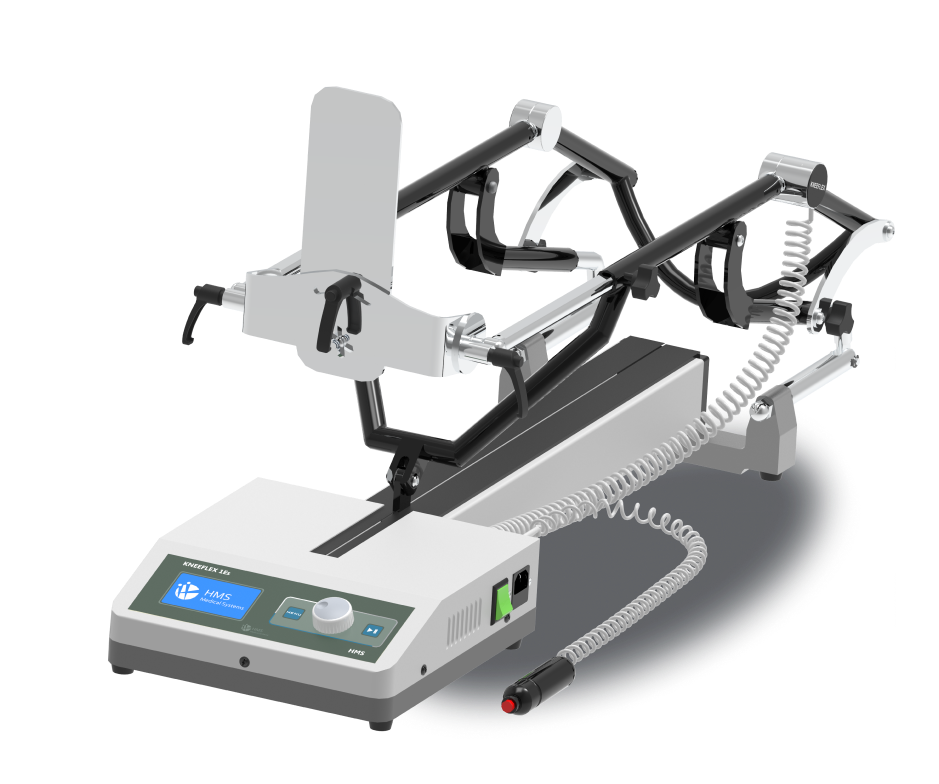

KNEEFLEX® Es
KNEEFLEX® Es is an anatomical-design continuous passive motion (CPM) machine for knee and hip rehabilitation. With a range of motion from -10° extension to 120° flexion in 1° increments, three speed settings (low/medium/high), automatic progressive angle increase (0°–20° over the set treatment time), adjustable extension and flexion pauses (1–99 seconds), universal left/right design and easy adult-to-pediatric conversion without adapter pieces, it supports patients up to 160 kg. A contactless magnetic sensor provides 1° accuracy, while the maintenance-free stainless steel ball screw and sturdy DC motor deliver noiseless, smooth operation at 14.75 kg.
-10° to 120° Range of Motion
3-Speed Operation
Progressive Angle (0°–20°)
Universal Left/Right Design
160 kg Patient Capacity
IEC 60601-1 Certified
CPM Motion Control & Clinical Performance
KNEEFLEX® Es provides anatomical CPM for knee and hip with 1° accuracy, 3-speed control, automatic progressive angle, adjustable pauses and noiseless operation — supporting patients up to 160 kg with universal left/right and adult/pediatric conversion.
-10° Extension to 120° Flexion — 1° Accuracy
Range of motion spans -10° extension (hyperextension) to 120° flexion, adjustable in 1° increments. A contactless magnetic sensor provides angle detection at 1° accuracy, ensuring the set ROM limits are maintained precisely throughout each treatment cycle. Adjustable pauses at both extension and flexion endpoints (1–99 seconds each) allow dwell time at end-range positions.
3-Speed Settings — Low, Medium, High
Three motion speed options: Low (80 seconds per 100° of travel), Medium (60 seconds per 100°) and High (35 seconds per 100°). Speed selection allows clinicians to start at slower motion for early post-operative sessions and progress to faster speeds as patient tolerance improves.
Progressive Angle — 0° to 20° Auto Increase
The progressive angle feature automatically increases the programmed flexion angle by 0° to 20° over the total set treatment time (5 minutes to 3 hours). This eliminates the need for manual ROM adjustments during sessions, gradually progressing the range of motion without clinical staff intervention.
Universal Left/Right & Adult-to-Pediatric Conversion
A single unit operates on both left and right legs without reconfiguration. Conversion from adult to pediatric sizing requires no adapter pieces — the calf section adjusts from 40–62 cm and the thigh section from 28–46 cm. This universal design reduces the number of CPM units a facility needs to stock.
Noiseless Operation & Maintenance-Free Drive
A sturdy DC motor drives the carriage through a maintenance-free stainless steel plated ball screw, delivering totally noiseless, smooth operation. The ultra-wide carriage (28 cm / 11” from centre) provides stable limb support. Suitable for bedside use in hospital wards where noise levels must be minimised.
14.75 kg with 160 kg Patient Capacity
At 14.75 kg and 90 × 29.5 × 25 cm, KNEEFLEX® Es is lightweight for transport between rooms while supporting patients up to 160 kg. Base unit operation with 10-patient progressive memory via handset. Convenient 4.5 m power cord. Universal mains input (100–240V, 50/60 Hz). Certified to IEC 60601-1 (Class I, Type B). Manufactured by HMS Medical Systems.
Engineered for Performance
Key features of KNEEFLEX ES from multi-modality output and channel independence to display, safety and build quality.
- Universal left / right design
- Total noiseless smooth operation
- Ultra-wide carriage 28cm (11″) from the center of the carriage
- Universal input internal power supply.
- Convenient 4.5m long power cord
- Light weight at only 14.75 Kg
- Easy conversion from adult to pediatric (no adapter pieces needed)
- 1° Accuracy, contact less magnetic sensor for angle detection
- Maintenance free stainless steel plated ball screw
- Sturdy DC motor for smooth operation
- Model : Kneeflex Es
- Design Type : Anatomical
- Operation Mode : Electrical
- Target Body Part : Knee, HIP
- Range of Motion – -10° extension – 120° flexion(1° settings)
- Pauses – 1 – 99 seconds (extension and flexion)
- Speed – 80 sec / 100° (Low), 60 sec / 100° (Medium), 35sec / 100° (High)
- Treatment Time – 5 min – 3 Hrs
- Length Range – Calf 40 – 62 cm, Thigh 28 – 46cm
- Progressive angle – 0° to 20° (increased automatically during the set treatment time)
Increases joint mobility and range of motion Helps decrease complications such as joint stiffness and adhesions. Reduces the length Of post-operative hospitalisation Builds patient confidence, well-being and independence
The benefits of CPM for Healing Cartilage
- Enhanced nutrition and metabolic activity
- Accelerated healing of articluar tissues
- Regeneration of cartilage
The benefits of CPM for healing tendons
- Restoration of the tendon’s gliding surface
- Greater mean breaking strength of the tendon
- Enhanced intrinsic healing through synovial diffusion
- Prevention of adhesion formation
Progressive range of motion eliminates time consuming adjustments by automatically increasing the programmed flexion angle by 0° to 20° for the total treatment time.
- Mains Voltage – 100 – 240V / 50 or 60 Hz
- Safety Class – Class I, Type B (IEC 60601 -1)
- Dimensions – L x B x H – 90 x 29.5 x 25 cms
- Weight – 14.75 Kgs
- Max Patient Weight – 160 kg
Accessories for KNEEFLEX ES
Genuine accessories designed to ensure optimal performance. hygiene and durability.
Product Enquiry
Fill in the form below and we’ll be in touch within 2–3 business days.
Model Comparison of Continuous Passive Motion Equipments
| PARAMETERS | KNEEFLEX® | KNEEFLEX-Es® |
|---|---|---|
| Range of motion | -10° to 120° flexion | -10° to 120° flexion |
| Pauses | 0 – 99 secs | 0 – 99 secs |
| Speed | 50 – 110 / min in 10 steps | 50 – 110 / min in 10 steps |
| Treatment time | 5min – 24hrs. Real time clock in 24 Hrs format | 5min – 3hrs. |
| Length range | Calf 32 – 54 cm Thigh 34 – 50 cm | Calf 40 – 62 cm Thigh 28 – 46 cm |
| Force reversal | 10 – 30 kg in 10 steps | 10 – 30 kg in 10 steps |
| Operation | Remote function | Base unit |
| Progressive memory | 10 | – |
