Traction Machines
DIGITRAC 102
DIGITRAC® 102 is a computerised cervical and lumbar traction unit with 8 traction modes, a 7-inch colour TFT touch display (90° rotatable), high force range up to 90 kg (198 lbs / 880 N), 10-level speed control (0.5–5 kg/sec), ramp steps (1–10), auto-engage, 50 user memory slots with patient ID and customisable display units (kg/lbs/N). Powered by an efficient BLDC motor with Saunders cervical fitting provision, it is the most advanced traction unit in the HMS range at 10 kg.
8 Traction Modes
7” Colour Touch Display
1–90 kg High Force
10-Level Speed Control
50 User Memory
IEC 60601-1 Certified
Advanced Traction Control & 8-Mode Flexibility
DIGITRAC® 102 delivers 8 traction modes, 10-speed BLDC motor, ramp stepping, auto-engage and 50-patient memory through a rotatable 7-inch touch display — the most advanced traction unit in the HMS range.
8 Traction Modes
Intermittent, Static, Progressive/Intermittent, Progressive/Static, Progressive/Regressive, Cyclic/Intermittent, Cyclic/Static and Cyclic modes. This 8-mode selection covers standard continuous and intermittent traction plus progressive, regressive and cyclic patterns not available on the DIGITRAC® 101 or INDOTRAC® D.
High Force 1–90 kg / Low Force 0–87 kg
High force range from 1 to 90 kg (198 lbs / 880 N) and low (base) force range from 0 to 87 kg (192 lbs / 853 N). Force is adjustable and displayed in user-selectable units — kg, lbs or Newtons. Hold time 1–99 sec and rest time 1–99 sec, both in 1-second steps. Treatment time 1–99 minutes.
10-Level Speed Control with Ramp Stepping
Traction speed adjustable across 10 levels from 0.5 to 5 kg/sec via BLDC motor. Ramp stepping from 1 to 10 steps with ramp pause time of 1–99 seconds allows graduated force application, building traction load incrementally rather than applying full force immediately.
7-Inch Colour TFT Touch Display — 90° Rotatable
A 7-inch colour TFT touch screen displays all traction parameters and mode selection. The display rotates 90° for flexible mounting — table-top, wall-mount or trolley positioning. Touch navigation provides direct parameter access without physical buttons.
50 User Memory with Patient ID & Auto-Engage
Stores 50 custom traction configurations with patient ID for quick recall. Auto-engage automatically applies the set traction force when the treatment starts, eliminating manual pre-tensioning. Easy-fit Saunders cervical harness provision.
10 kg with BLDC Motor & Universal Input
BLDC (brushless DC) motor provides efficient, reliable, smooth operation. Unit weighs 10 kg at 33 × 33 × 35 cm. Universal mains input (100–240V, 50/60 Hz). IEC 60601-1 (Class I, Type B). Manufactured by HMS Medical Systems.
Engineered for Excellence
Explore the key features, technical specifications, and applications designed to deliver reliability, efficiency, and versatility across a wide range of treatments.
- 8 Traction Modes
- 7” Colour TFT Display
- Traction Speed Level (1 – 10)
- High Force Range 1 – 90kg (198lbs)(880N)
- Low Force Range 0 – 87kg (192lbs)(853N)
- Auto-Engage
- Customizable units (Kg – lbs – N)
- 50 User memory with patient Id
- 90° Rotatable display
- Universal Input 100-240V, 60/50Hz
- Efficient BLDC motor
- Easy fix cervical saunders
- Model : DIGITRAC 102
- Operation Mode : Electrical
- Usage : Clinical, Hospital, Personal
- High force – 1-90 Kg – 198lbs – 880N
- Low force – 0-87 Kg – 192lbs – 853N
- Hold Time – 1-99 Seconds (1 sec step)
- Rest Time – 1-99 Seconds (1 sec step)
- Ramp steps 1-10 Steps
- Ramp pause time – 1-99 secs (1 sec step)
- Speed – 0.5 – 5kg/sec (10 speed)
- Traction Mode – 8 Modes
- Treatment Time – 1-99 minutes (1 min.step)
- Display – 7” Colour TFT Display
- Input Voltage – 100 – 240 V, 50/60 Hz
- Safety Class – Class I, Type BF (IEC 60601 -1)
- Dimensions – LxBxH – 33x33x35Cm
- Weight – 10 Kg
- Intermittent Mode
- Static Mode
- Progressive / Intermittent Mode
- Progressive / Static Mode
- Progressive / Regressive Mode
- Cyclic / Intermittent Mode
- Cyclic / Static Mode
- Cyclic Mode
Frequently bought together
Explore products that match your needs. Built for performance and reliability.
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Flexible Positioning
Remote-controlled height and tilt adjustment
Strong Table Support
Smooth and comfortable operation
RECOMMENDED

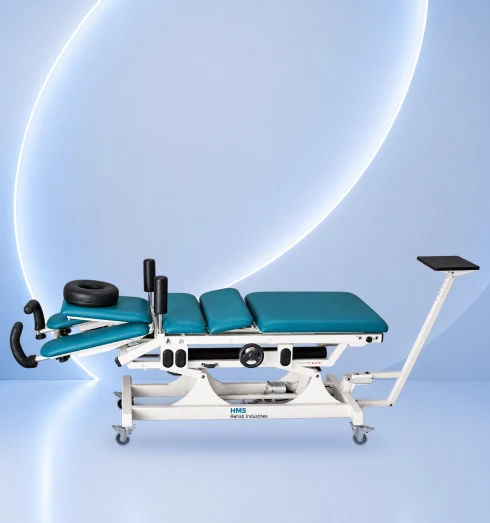

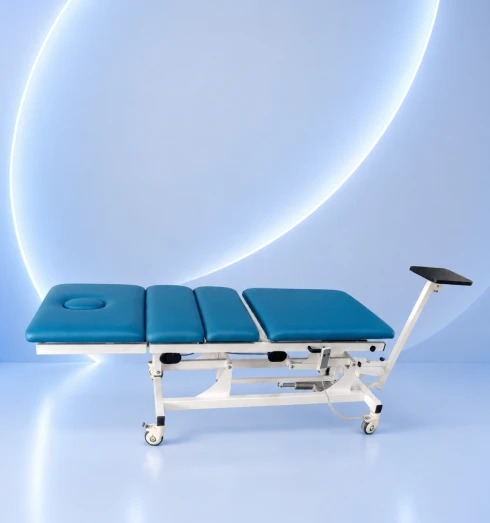

HIGH-LOW 3 FOLD TRACTION TABLE
HMS High-Low 3 Fold Traction Table is designed for comfortable traction treatment with full height adjustment and movable table sections. Its practical design supports convenient positioning for both patient and therapist.
250 Kg Load Capacity
Height Adjustable
Lockable Sliding Section
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Multiple Treatment Options
Back, neck, hip, knee and carpal traction
Patient Comfort
Adjustable height, arm rests and stabilization
RECOMMENDED
SPINETRAC®
HMS SPINETRAC® is a spinal decompression therapy system designed for controlled traction and rehabilitation. Its adjustable table and multiple treatment positions provide flexibility for different clinical applications.
Supine & Prone Use
Adjustable Pelvic Tilt
Lower Operating Cost
Product Enquiry
Fill in the form below and we’ll be in touch within 2–3 business days.
Model Comparison of HMS Traction Machines
| PARAMETERS | INDOTRAC® D | DIGITRAC® 101 |
|---|---|---|
| Therapy type Continuous & Intermittent | [yes] | [yes] |
| Traction force | 3 – 60 Kgs (120Kg with doubler) | 3 – 90 Kgs |
| Hold time | 10 – 80 sec (5 sec step) | 1 – 99 sec (1 sec step) |
| Rest time | 1 – 20 sec (1 sec step) | 1 – 99 sec (1 sec step) |
| Timer | 0 – 99 min | 1 – 99 min (1 sec step) |
| Traction speed | [no] | 5 speed |
| Traction mode | Cervical & Pelvic | Cervical & Lumber |
| Base force | [no] | 2 – 85Kgs (1 Kg step) |
| Progressive step | [no] | 1 – 10 step (max.) |
| Memory | [no] | 30 |
| Display | 16 x 2 LCD | 128 x 64 LCD |
Our Latest Physiotherapy Blogs
Explore our latest physiotherapy blogs for helpful information on equipment, treatment technologies, and rehabilitation practices.

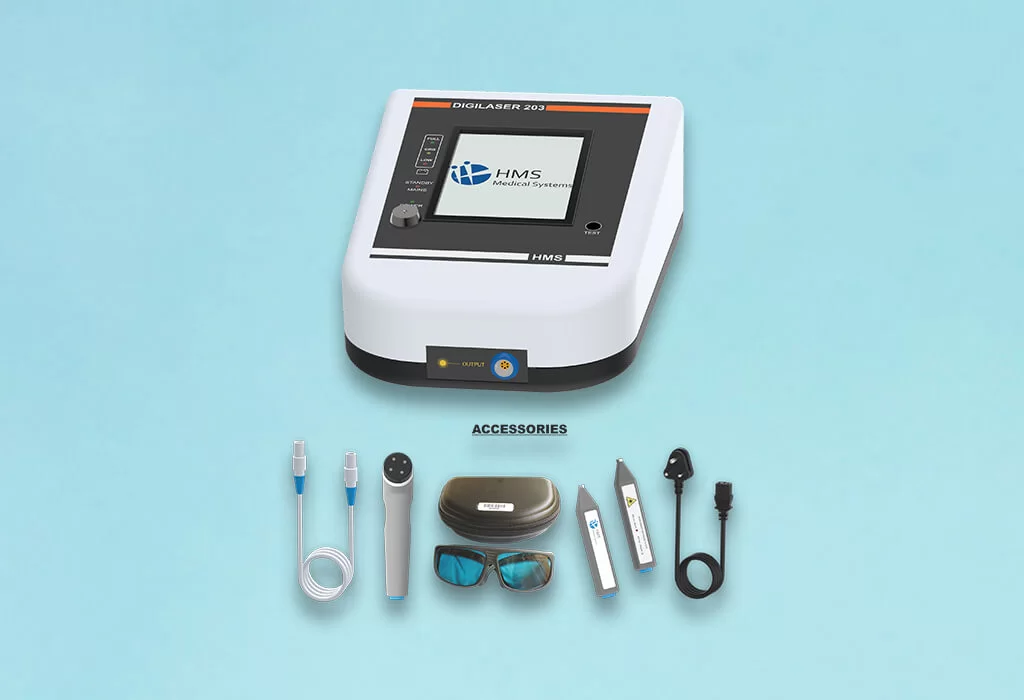

Buy Physiotherapy Equipments Online

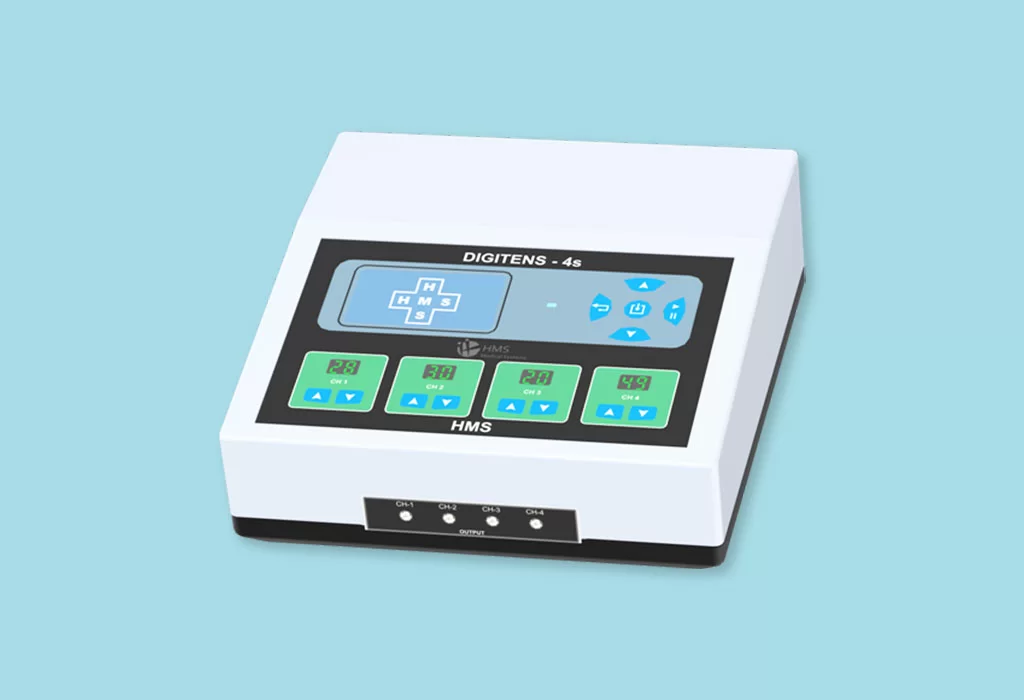

6 Important Physiotherapy Equipments
