1 MHz Longwave Output

Capacitor Field Method

3 Electrode Sizes

Continuous & Pulsed Modes

1.7 kg Portable Design

IEC 60601-1 Certified

Precision Ultrasound Therapy, Redefined

Advanced 1 & 3 MHz ultrasound system with smart contact control, touchscreen interface, and customizable therapy programs for safe, effective, and modern rehabilitation.

Longwave Diathermy Control & Performance

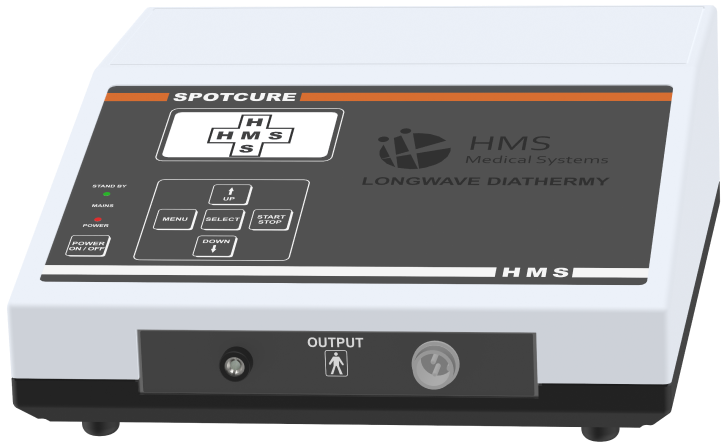

SPOTCURE® provides computerised longwave diathermy output through the capacitor field method — combining 1 MHz frequency, continuous/pulsed delivery, 15-step power control and three electrode sizes into a 1.7 kg portable system that works across a wide voltage range.

1 MHz Capacitor Field Output

Operates at 1 MHz output frequency (300-metre wavelength) using the capacitor field method for deep-tissue heating. This positions SPOTCURE® between ultrasound therapy (smaller, more focused area) and shortwave diathermy (broader coverage) — offering a mid-range treatment area suitable for targeted longwave diathermy applications in physiotherapy.

Continuous & Pulsed Output Modes

Supports both continuous and pulsed energy delivery. Pulsed mode operates at 100 Hz with 4 selectable pulse steps, allowing physiotherapists to control the rate of energy delivery and tissue heating based on treatment requirements. Continuous mode provides uninterrupted output for sustained heating applications.

15-Step Adjustable Power Output

Output power is adjustable across 15 discrete steps (1 Watt per 100 Ohm load), giving precise control over heating intensity. The stepped adjustment allows clinicians to incrementally increase or decrease output during treatment based on patient feedback and clinical parameters.

3 Electrode Sizes — 30, 50 & 60 mm

Ships with three capacitive electrode sizes — 30 mm, 50 mm and 60 mm — for treating different body regions. Smaller electrodes focus energy on compact areas, while larger electrodes distribute output across broader treatment zones. Electrode selection lets physiotherapists match the treatment field to the target area.

Microcontroller-Based with Capsense Keys

Microcontroller-based circuitry manages all output parameters, timer functions and safety monitoring. Touch-free capsense (capacitive sensing) keys provide hygienic, responsive control without physical buttons — no mechanical wear over time. A 128 × 64 graphic LCD display shows all active parameters including output mode, power step, pulse setting and treatment timer (0–60 minutes).

1.7 kg Build with Wide Voltage Tolerance

At 1.7 kg and 30 × 25 × 10.5 cm in a plastic moulded cabinet, SPOTCURE® is among the lightest diathermy machines in its class. Wide input voltage range of 90–270V (50/60 Hz) ensures stable operation even during heavy voltage fluctuations — suitable for clinics in areas with inconsistent mains supply. Certified to IEC 60601-1 (Class I, Type BF). Also designed for veterinary care applications.

Engineered for Performance

Key features of SPOTCURE® from multi-modality output and channel independence to display, safety and build quality.

Features
  • Microcontroller based
  • Large LCD display
  • Touch free capsence keys
  • Plastic moulded light weight cabinet
  • Wide input voltage
  • Electrode size 30, 50 & 60mm
  • Model : Spotcure Longwave Diathermy
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
Specifications
  • Output Frequency – 1MHz
  • Output Power – 1 Watts/100 Ohm. Adj in 15 steps
  • Output Mode – Continuous / Pulsed
  • Output Wavelength – 300 meter
  • Pulse Freq. – 100 Hz (45steps)
  • Display – 128 x 64 Graphic LCD Display
  • Timer – 0-60 min
Applications
  • Tendinitis
  • Low back pain
  • Myalgia
  • Arthrosis
  • Bursitis
  • Ligament injuries
  • Ankle distortion
Technical Data
  • Mains Supply – 90 – 270V, 50 / 60 Hz
  • Safety Class – Class I, Type BF (IEC 60601 -1)
  • Dimensions – L x B x H – 30x25x10.5 cms
  • Weight – 1.7 Kgs

Accessories for SPOTCURE®

Genuine accessories designed to ensure optimal performance. hygiene and durability.

Spotcure_output_handle

Spotcure output handle

Replacement output handle for the HMS SPOTCURE longwave diathermy unit with integrated cable.

Output_Cable_Black_for_Inactive_Handle

Output Cable Black (for Inactive Handle)

Black output cable for connecting the inactive (return) electrode handle in stimulation setups.

Applicator (60mm)

60 mm capacitive electrode applicator head for SPOTCURE longwave diathermy treatment.

Applicator (50mm)

50 mm capacitive electrode applicator head for SPOTCURE longwave diathermy treatment.

Applicator (30mm)

30 mm capacitive electrode applicator head for targeted SPOTCURE longwave diathermy use.

SS Plate Spocture

Stainless steel return plate for the SPOTCURE longwave diathermy unit circuit completion.

Inactive Handle

Return electrode handle (inactive) for completing the circuit in muscle stimulator applications.

Frequently bought together

Box Trolly

HMS Box trolley

HMS Box Trolley is strong and durable in construction, made using high quality metal materials. It features a powder coated MS frame that ensures long lasting performance and easy maintenance. Designed for smooth movement, the trolley is fitted with caster wheels with brake support for safety and stability. The box trolley is detachable for convenient shipping and storage. It comes with a closed accessories storage design that helps keep equipment organised and protected during use. Built to handle regular clinical and hospital requirements, the HMS Box Trolley offers reliable support and ease of handling in everyday operations.

HMS Box trolley
  • MS powder coated frame
  • Fitted with caster wheel with break
  • Detachable for shipping
  • Accessories storage is closed
  • Can withstand upto 15kgs
  • Trolley height 96cm
  • Tray length 52cm width 46cm
Model and Usage
  • Model : Box Type Trolley
  • Operation Mode : Manual
  • Usage : Clinical, Hospital, Persona

Product Enquiry

Fill in the form below and we’ll be in touch within 2–3 business days.

    Our Range of Muscle Stimulator Machines

    Explore the complete HMS range of Muscle Stimulator Machines and electrotherapy equipment — from portable pocket devices to advanced multi-channel clinical systems.

    DIGISTIM
    DIGISTIM 202
    INDOSTIM DT
    DIGISTIM EMS+T
    WALKSTIM
    WALKSTIM

    Model Comparison of HMS Muscle Stimulator Machines

    PARAMETERSDIGISTIM® 202DIGISTIM®INDOSTIM® DTINDOSTIM® 201DIGISTIM® EMS
    Plain galvanic[yes][yes][yes][yes][yes]
    No. of channels2 Independent111One
    IG (sec)T – 30-300 D – 01-300 (11 steps)T – 30-300 D – 01-300 (11 steps)30 – 300 (11 steps)30 – 300IG On Time: 30 – 150 ms. IG Off Time: 1 Sec.
    Faradic[yes][yes][yes][yes] 50Hz / 0.7ms50Hz/0.7ms
    Surge faradic ON time1 – 10 sec1 – 10 sec2 – 12 sec (1 Sec step)1 – 6 sec1 – 6 Sec
    Surge faradic OFF time1 – 10 sec1 – 10 sec2 sec (fixed)1 – 6 sec[no]
    TENS[yes][yes][yes][no]2 – 125Hz
    TENS Burst[no][no][no][no][no]
    FES[yes][no][no][no][no]
    Timer[yes][yes][no][no][no]
    Power sourceMains (100 – 240V)Mains (100 – 240V)Mains (100 – 240V)Mains (100 – 240V)9V adapter , 9V battery
    Dia-dynamic[yes][no][no][no][no]
    Display128 x 64 LCD16 x 2 LCDLED–[no]
    Output current[no]0–50 mA0–40 mA0–40 mA0-40 mA
