Longwave Diathermy Machines

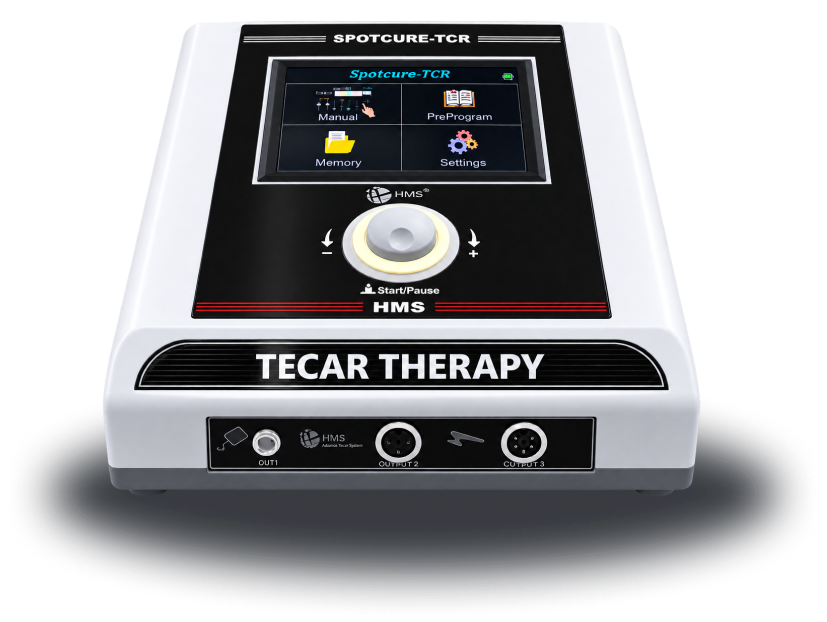

SPOTCURE® TCR
SPOTCURE® TCR is a TECAR (Transfer of Energy Capacitive and Resistive) therapy machine that delivers high-frequency electromagnetic energy at 460 KHz and 540 KHz through two distinct applicator modes — capacitive for superficial soft tissue and resistive for deeper structures. With output power up to 250 VA (capacitive) and 150 W (resistive), continuous and pulsed output modes, 17 condition-wise clinical protocols, sequential treatment programming and a 5-inch touch TFT display, it is designed for physiotherapy clinics, sports medicine facilities and rehabilitation centres that require targeted deep-tissue heating capability.
Capacitive & Resistive Modes
460 KHz / 540 KHz Output
17 Clinical Protocols
5” Touch TFT Display
Sequential Treatment Programs
IEC 60601-1 Certified
TECAR Therapy Control & Clinical Performance
SPOTCURE® TCR provides dual-frequency TECAR output with independent capacitive and resistive power control, sequential treatment programming and 17 condition-wise protocols — giving physiotherapy professionals a focused deep-tissue heating system with flexible treatment configuration.
Capacitive & Resistive Dual-Mode Output
Delivers TECAR therapy through two distinct applicator modes. Capacitive mode targets superficial soft tissues such as muscles with output up to 250 VA (1–10 VA in 1 VA steps, 10–250 VA in 5 VA steps). Resistive mode reaches deeper structures including tendons, ligaments and bone with output up to 150 W (1–10 W in 1 W steps, 10–150 W in 5 W steps). Both modes operate at 460 KHz / 540 KHz output frequency.
Continuous & Pulsed Output Modes
Supports both continuous and pulsed energy delivery. In pulsed mode, ON time is adjustable from 3–10 seconds (1-second steps) and OFF time from 1–10 seconds (1-second steps), allowing physiotherapists to control energy dosage and tissue heating rate based on the treatment area and clinical requirement.
17 Condition-Wise Clinical Protocols
Pre-programmed with 17 clinical protocols that auto-configure mode (capacitive/resistive), power level, pulsed/continuous delivery and treatment duration for specific application areas. Reduces manual setup time and standardises treatment parameters across clinical staff. Additionally, 30 user memory slots allow physiotherapists to save custom configurations for quick recall.
Sequential Treatment — Up to 4 Therapy Forms
Supports sequential treatment programming with up to 4 different therapy forms in a single session. Physiotherapists can programme a sequence that transitions between capacitive and resistive modes at different power levels and durations — running the full treatment sequence automatically without manual intervention between stages.
5-Inch Touch TFT Display with Contact Sensor
A 5-inch colour touch TFT display provides direct access to mode selection, protocol navigation, power adjustment and timer settings. A built-in contact control sensor monitors applicator-to-skin contact during treatment, providing feedback to ensure consistent energy delivery throughout the session.
2.5 kg Clinical Build & Safety Certified
Housed in a lightweight plastic moulded cabinet measuring 30 × 25 × 10.5 cm and weighing 2.5 kg. Universal mains input (100–240V, 50/60 Hz) with treatment timer up to 99 minutes. Certified to IEC 60601-1 (Class I, Type BF) safety standard. Manufactured by HMS Medical Systems — ISO 13485:2016 certified physiotherapy equipment manufacturer since 1994.
Engineered for Performance
Key features of SPOTCURE® TCR from multi-modality output and channel independence to display, safety and build quality.
- Contact control sensor
- Plastic moulded light weight cabinet
- 5″ Touch TFT display
- Deep heat
- Capacitive & resistive applicators
- 17 Condition wise Clinical Protocols
- 4 forms of sequential program
- 30 User memory
- Model : SPOTCURE TCR
- Operation Mode : Electrical
- Usage : Clinical, Hospital, Personal
- Output Frequency – 460kHz / 540kHz
- Output Power – 1-150W (1-10W/1W step), (10-150W/5W step) at Resistive mode 1-250VA (1-10VA/1VA step), (10-250VA/5VA step) at capacitive mode
- Output Mode – Continuous / Pulsed
- Pulsed ON Time – 3-10 Sec (1 Sec Steps)
- Pulsed OFF Time – 1-10 Sec (1 Sec Step)
- Timer – 1-99 min
- Sequential Treatment – Upto 4 forms of therapy
- Display – 5″ Touch TFT Display
- Mains Supply – 100-240V, 50/60 Hz
- Safety Class – Class I, Type BF (IEC 60601-1)
- Dimensions – LxBxH – 30x25x10.5 cm
- Weight – 2.5 kg
- Tendinitis, Low back pain
- Myalgia, Arthrosis, Bursitis
- Ligament injuries
- Ankle distortion
- Scar tissue
- Sport trauma
- Neuropathies
- Spine and peripheral joint disorders
