Ultrasound Combination Therapy Machines

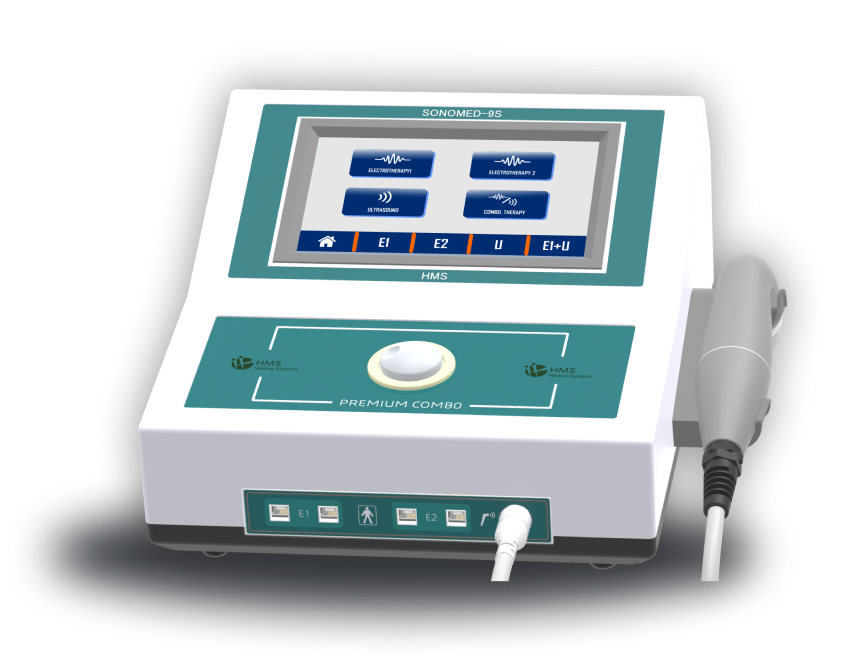

SONOMED® 9S
SONOMED® 9s is a premium combination therapy machine integrating 1 & 3 MHz dual-frequency ultrasound with 4-channel electrotherapy across 13+ modalities — teIFT, Russian Current, TENS, Muscle Stimulation (Galvanic/IG), Faradic, Diadynamic, VMS, HV Pulse, Ultra Reiz, Micro Current and Iontophoresis. With a 7-inch colour touch display, 132 condition-wise pre-set protocols, user-settable memory with patient names, contact control sensor, static transducer option and the ability to treat 3 patients simultaneously, it is the most comprehensive combination therapy unit in the HMS range at 3.2 kg.
4-Channel Electro + 1/3 MHz Ultrasound
13+ Therapy Modalities
132 Pre-Set Protocols
7” Colour Touch Display
Treat 3 Patients Simultaneously
IEC 60601-1 Certified
Complete Combo Therapy Control & Performance
SONOMED® 9s delivers the widest combination of electrotherapy modalities and ultrasound in the HMS range — 13+ modalities, 4 electrotherapy channels, dual-frequency ultrasound, 132 protocols, 7-inch touch control and 3-patient simultaneous treatment.
13+ Electrotherapy Modalities + Dual-Frequency Ultrasound
Integrates IFT (4-pole classic, vector 90°, vector 45°, 2-pole, carrier 2000–10000 Hz), Russian Current, TENS (symmetric/asymmetric/alternating/monophasic), Muscle Stimulation (galvanic, IG diagnostic & therapeutic), Faradic/Surge Faradic, Diadynamic (DF/MF/CP/LP/RS/MM), VMS, HV Pulse Current, Ultra Reiz, Micro Current, Iontophoresis — plus 1 & 3 MHz ultrasound with 3 pulse rates (16/48/100 Hz) and contact sensor. The most modalities available in any single HMS unit.
4-Channel Electrotherapy + 3 Simultaneous Patients
Four independent electrotherapy channels with individual intensity control via encoder, operating alongside dual-frequency ultrasound. Ultrasound and electrotherapy can run simultaneously, combined or individually. The system supports treatment of 3 patients at the same time from a single unit.
132 Condition-Wise Pre-Set Protocols
Pre-loaded with 132 condition-wise treatment protocols — the largest protocol library in the HMS range. Each preset auto-configures the relevant modality, frequency, output mode, intensity and timing. User-settable memory stores custom configurations with patient names for quick recall.
7-Inch Colour Touch Display
The largest display in the HMS combination therapy range. The 7-inch colour resistive touch screen provides direct access to all modalities, protocol selection, manual parameter adjustment, ultrasound settings, intensity control and user memory functions.
1 & 3 MHz Ultrasound with Contact Sensor
Dual-frequency ultrasound with 5 cm² standard transducer, optional 1 cm² small-area and 5 cm² static transducer. 3 pulse rates (16/48/100 Hz), 9 duty cycle settings, max intensity 3 W/cm². Acoustic contact sensor monitors transducer-to-skin coupling. Collimated beam with BNR 5:1.
3.2 kg Clinical Build
Housed in a plastic cabinet measuring 30 × 26 × 15 cm and weighing 3.2 kg. Cable and electrode auto-checking mode. Advanced patient safety system. Universal mains (100–240V, 50/60 Hz). IEC 60601-1 (Class 1, Type BF). Also for veterinary care. Manufactured by HMS Medical Systems.
Engineered for Excellence
Explore the key features, technical specifications, and applications designed to deliver reliability, efficiency, and versatility across a wide range of treatments.
- Both medium and low frequency currents
- Ultrasound and Electro therapy can be used simultaneously, combined and individually
- Can treat 3 patients simultaneously
- Ultrasound therapy 1 & 3 MHZ
- 132 Pre-programs with condition wise protocols
- Cable and electrode checking mode
- User settable memory with patient name
- Encoder for intensity
- Light weight and compact design
- Easy to operate
- Plastic cabinet
- 7″ Colour Touch Display
- International standards and specifications
- Two sizes of Transducer
- Advanced patient safety system
- Static Ultrasound Transducer
- Independent intensity variation for each channels
- 4 Channel for Electro Therapy
- Model : SONOMED – 9S
- Operation Mode : Electrical
- Usage : Clinical, Hospital, Personal
Interferential
- Carrier frequency – 2000Hz – 4000Hz(100Hzstep),
4000Hz – 10000Hz(500Hzstep) - Base frequency – 1-250Hz(1Hzstep)
- Sweep frequency – 0-250 Hz (1Hzstep)
- Sweep modulation Programs – 1/1S, 5/1/5S, 6/6S
- Therapy Modes – Four pole Classic,
Four pole Vector 90°,
Four pole Vector 45°,
Two pole pre-modulated
Russian Current
- Frequency – 2000Hz – 4000Hz(100Hz step),
4000Hz – 10000Hz(500Hz step) - Modulation – Constant/Surge
- Ramp Rise/Fall – 1-10Sec (1Sec step)
- Burst – 30-250Hz(1Hz step)
- Hold ON – 1-99 Sec(1Sec step)
- Hold OFF – 1-99 Sec(1Sec step)
Diadynamic Currents
- Diadynamic currents – DF, MF, CP, LP, RS, MM
Iontophoresis
- Dosage – 2-150mA/min (2mA/min step)
- Intensity – 1-5mA (0.5mA step)
- Type – Constant/Interrupted
Muscle Stimulator Currents
- Plain galvanic – Continuous DC Current
- Int. galvanic – Diagnostic – 0.01, 0.03, 0.1, 0.3, 1, 3, 10, 30, 100, 300, 1000mSec
Therapeutic – 30-300mSec (10 mSec)
Tens
- Frequency – 2-250Hz (in Hz variation)
- Pulse Width – 20-250uSec(in 1 uSec variation)
- Burst Frequency – 1-10Hz
- Sweep Frequency – 2-245Hz to 7-250Hz
- Waveform – Symmetric/Asymmetric/Alternating/Monophasic
- Modes – Continuous/Burst/Sweep burst & Sweep
Ultra Reiz
- Frequency – 142.8Hz
- ON Time – 2 mSec
- OFF Time – 5 mSec
VMS (Vibratory Motor Stimulation)
- Frequency – 2-250Hz
- Wave form – Inverted Symmetric
- Pulse width – 20-250us
Microcurrent
- Frequency – 1-1000Hz
- Intensity – 10uΑ – 1000uΑ
Ultrasound Therapy
- Frequency – 1 & 3 MHz
- Mode – Cont. / Pulse
- Pulse freq – 16Hz/48Hz/100Hz/9 settings
- ERA Transducer L – 5 cm²
- ERA Transducer S – 1 cm² (Optional)
- ERA Static Transducer – 5 cm²
- Max. Intensity – 3W/cm²
- Contact control – Acoustic sensor
- Type of beam – Collimated
- Beam non-uniformity Ratio – 5:1 (Max)
Faradic/Surge Faradic
- Freq./P.width – 50 Hz/0.7 mSec
- Surge ON time – 1-10 sec. (in 1 sec. variation)
- Surge OFF time – 1-6 sec. (in 1 sec. variation)
HV Pulse Current
- Frequency – 1-200Hz(1 Hz step)
- Pulse width – 100us
- Type – Constant/Surge
- Display – 7″ Colour Resistive Touch Display
- Mains Voltage – 100-240V/50/60Hz
- Safety Class – Class 1, Type BF (IEC60601-1)
- Dimensions – LxBxH – 30x26x15cms
- Weight – 3.2Kgs
Accessories for SONOMED® 9S
Genuine accessories designed to ensure optimal performance. hygiene and durability.
Frequently bought together
HMS Box trolley
HMS Box Trolley is strong and durable in construction, made using high quality metal materials. It features a powder coated MS frame that ensures long lasting performance and easy maintenance. Designed for smooth movement, the trolley is fitted with caster wheels with brake support for safety and stability. The box trolley is detachable for convenient shipping and storage. It comes with a closed accessories storage design that helps keep equipment organised and protected during use. Built to handle regular clinical and hospital requirements, the HMS Box Trolley offers reliable support and ease of handling in everyday operations.
- MS powder coated frame
- Fitted with caster wheel with break
- Detachable for shipping
- Accessories storage is closed
- Can withstand upto 15kgs
- Trolley height 96cm
- Tray length 52cm width 46cm
- Model : Box Type Trolley
- Operation Mode : Manual
- Usage : Clinical, Hospital, Persona
Frequently bought together
Explore products that match your needs. Built for performance and reliability.
Why we suggest this
A practical solution that combines quality, performance, ease of use, and value. Designed to meet everyday requirements with reliable performance and user-friendly operation.
Strong & Durable Build
High quality MS frame
Smooth Mobility
Faster wheels with brake support
RECOMMENDED
HMS DIGIVAC
HMS DIGIVAC is a versatile vacuum and pressure therapy unit with adjustable pulse and pressure settings. Designed with dual-channel operation for flexible and easy clinical use.
High Load
Capacity
Powder Coated
Low
Maintenance
₹150,000.00 (excl. GST) + shipping chargesRead more
Product Enquiry
Fill in the form below and we’ll be in touch within 2–3 business days.
Model Comparison of HMS Ultrasound Combination Therapy Machines
| PARAMETERS | SONOTENS® | SONOMED® 7s plus | SONOMED® 302 |
|---|---|---|---|
| ULTRASOUND | [yes] | [yes] | [yes] |
| Frequency | 1MHz | 1 & 3 MHz | 1 & 3 MHz |
| Output modes | Continuous/Pulsed | Continuous/Pulsed | Continuous/Pulsed |
| Pulse duration / freq. | 1,2,4&5 msec / 100Hz | 100Hz/9 settings | 100Hz/9 settings |
| Intensity (max.) | 3W/cm² | 3W/cm² | 3W/cm² |
| Programs | – | 47 presets | 47 presets |
| TENS | [yes] | [yes] | [yes] |
| Frequency | Upto 250Hz | 2 – 250Hz | 2 – 250Hz |
| Pulse width | [no] | 20 – 250sec (1 sec step) | 20 – 250sec (1 sec step) |
| Burst frequency | [no] | 1 – 10 Hz | 1 – 10 Hz |
| Program | 5 pre-sets | 77 presets | 57 presets |
| Waveform | Asymmetrical Bi-phasic square pulse | ||
| MUSCLE STIMULATOR CURRENTS | [no] | [yes] | [no] |
| Plain galvanic | [no] | Continuous DC current | [no] |
| Int. galvanic | [no] | Diagnostic & therapeutic | [no] |
| FARADIC | [no] | [yes] | [no] |
| Freq. / p.width | [no] | 50Hz / 0.7msec | [no] |
| SURGE FARADIC | [no] | [yes] | [yes] |
| Surge on time | [no] | 1 – 10 sec (1 sec step) | [no] |
| Surge off time | [no] | 1 – 6 sec (1 sec step) | [no] |
| Ultra reiz | [no] | [yes] | [no] |
| ON time | [no] | 2 msec | [no] |
| OFF time | [no] | 5 msec | [no] |
| LOW FREQUENCY ALTERNATING CURRENT | [no] | [yes] | [no] |
| Diadynamic currents | [no] | DF, MF, CP, LP, RS, MM | [no] |
| RUSSIAN CURRENT | [no] | [yes] | [yes] |
| Frequency | [no] | 2500 Hz | 2500 Hz |
| Ramp Rise/Fall | [no] | 1 – 10 sec (1 sec step) | 1 – 10 sec (1 sec step) |
| Burst | [no] | 50 – 250 Hz (10 Hz step) | 50 – 250 Hz (10 Hz step) |
| Hold ON | [no] | 1 – 99 sec (1 sec step) | 1 – 99 sec (1 sec step) |
| Hold OFF | [no] | 1 – 99 sec (1 sec step) | 1 – 99 sec (1 sec step) |
| INTERFERENTIAL | [no] | [yes] | [yes] |
| Carrier frequency | [no] | 2000Hz/4000Hz | 2000Hz/4000Hz |
| Base frequency | [no] | 1 – 150Hz (1 Hz step) | 1 – 150Hz (1 Hz step) |
| Sweep frequency | [no] | 0 – 150Hz (1 Hz step) | 0 – 150Hz (1 Hz step) |
| Sweep Modulation Programs | [no] | 1/1S 5/1/5S 6/6S | 1/1S 5/1/5S 6/6S |
| Output channels | Dependent | Dependent | Dependent |
| Therapy modes | [no] | Four pole interferential, Four pole vector 90°, Four pole vector 45 °, Two pole pre-modulated | Four pole interferential, Four pole vector 90°, Four pole vector 45 °, Two pole pre-modulated |
| Static | [no] | [no] | [no] |
| Display | LED | LCD (128×128) | LCD (128×64) |
| Timer | 0 – 99 min | 0 – 99 min | 0 – 99 min |
| Acoustic sensor | [yes] | [yes] | [yes] |
| Memory | [no] | 30 | 30 |
