Traction Machines
DIGITRAC 101
DIGITRAC® 101 is a microcontroller-based cervical and lumbar traction unit with traction force up to 90 kg (1 kg steps), base force up to 85 kg, 5-speed selection, progressive step increment (1–10 steps), 128 × 64 graphic LCD display, 30 user memory slots and Saunders fitting provision. With continuous and intermittent modes, user-defined hold time (1–99 sec), rest time (1–99 sec) and treatment time (1–99 min), it provides a reliable heavy-duty traction motor in a 9.5 kg unit for daily clinical use.
3–90 kg Traction Force
5-Speed Selection
Progressive Step (1–10)
128 × 64 Graphic LCD
30 User Memory
IEC 60601-1 Certified
Cervical & Lumbar Traction with 5-Speed Control
DIGITRAC® 101 provides cervical and lumbar traction with up to 90 kg force, 5-speed control, progressive stepping, graphic LCD and 30 user memory — the mid-range traction unit between the INDOTRAC® D and the DIGITRAC® 102.
3–90 kg Traction Force / 2–85 kg Base Force
Traction force adjustable from 3 to 90 kg in 1 kg steps. Base (low) force from 2 to 85 kg in 1 kg steps. This is the same peak force as the DIGITRAC® 102 and significantly higher than the INDOTRAC® D’s 60 kg maximum. Supports both cervical and lumbar traction modes.
5-Speed Variable Selection
Five selectable traction speeds control the rate at which force is applied and released during intermittent traction cycles. Variable speed prevents abrupt force changes, allowing smooth, controlled load application tailored to patient tolerance.
Progressive Step Increment — 1–10 Steps
Progressive stepping automatically increases traction force in 1 to 10 incremental steps over the treatment session. This graduated force progression builds traction load systematically rather than applying the full set force from the first cycle.
128 × 64 Graphic LCD Display
A 128 × 64 graphic backlit LCD display shows traction force, base force, hold time, rest time, treatment time, speed setting and progressive step parameters. Clear readability in all lighting conditions for monitoring during treatment sessions.
30 User Memory & Saunders Provision
30 user memory slots store custom traction configurations for quick patient recall. Provision for Saunders cervical harness fitting. User-defined hold time (1–99 sec), rest time (1–99 sec) and treatment time (1–99 min) in 1-step increments.
9.5 kg with Heavy-Duty Motor
Reliable, durable heavy-duty motor with noiseless operation. Unit weighs 9.5 kg at 28.5 × 19.8 × 32.4 cm. Power consumption: 50 watts. Universal mains (100–240V, 50/60 Hz). IEC 60601-1 (Class 1, Type B). Easy to mount on traction table. Manufactured by HMS Medical Systems.
Engineered for Excellence
Explore the key features, technical specifications, and applications designed to deliver reliability, efficiency, and versatility across a wide range of treatments.
- Static, Intermittent and cyclic mode.
- Cervical and Lumber mode.
- Progressive and step increment
- Variable speed selections
- High force range upto 90 Kgs
- Low force range upto 85 Kgs
- Wide input voltage range
- User defined Hold, Rest and Treatment time
- Graphic LCD display for all parameters
- User-friendly digital interface
- Provision for Saunders fitting
- Reliable, durable heavy-duty motor
- Noiseless operation
- Easy to mount in table
- Lite weight
- Model : DIGITRAC 101
- Operation Mode : Electrical
- Usage : Clinical, Hospital, Personal
- Traction force – 3 Kg to 90 Kg (1 Kg step)
- Base force – 2 Kg to 85 Kg (1 Kg step)
- Traction mode – Cervical and Lumber
- Treatment time – 01 to 99 min (1 min step)
- Hold time – 01 to 99 sec (1 sec step)
- Rest time – 01 to 99 min (1 sec step)
- Traction speed – 5 speed
- Progressive step – 1 to 10 step (max)
- Input Voltage – 100 to 240 V AC 50/60 Hz
- Electrical class – Class 1 Type B
- Power consumption – 50 Watts
- Dimensions – LXBXW – 285mm x 198mm x 324mm
- Weight – 9.5 Kgs
Accessories for DIGITRAC 101
Genuine accessories designed to ensure optimal performance. hygiene and durability.
Frequently bought together
Explore products that match your needs. Built for performance and reliability.
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Adjustable Vacuum Pressure
Easy to Adjust
Low Noise & Vibration
Smooth and comfortable operation
RECOMMENDED

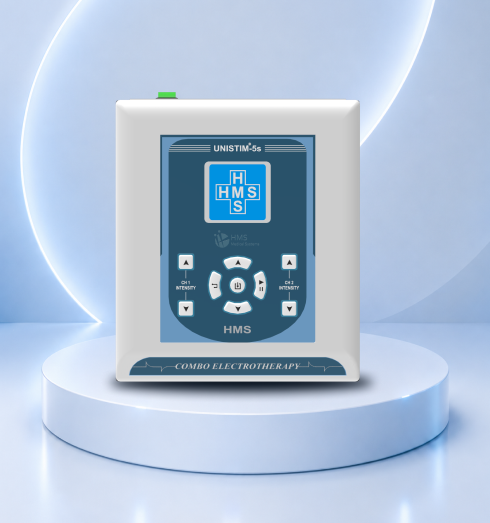

HMS UNISTIM 5S
HMS UNISTIM 5S is an advanced interferential therapy unit designed for precise and reliable physiotherapy treatments. Built with user-friendly controls for convenient clinical use.
Compact Design
Patient Safety
Clinical Use
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Adjustable Vacuum Pressure
Easy to Adjust
Low Noise & Vibration
Smooth and comfortable operation
RECOMMENDED

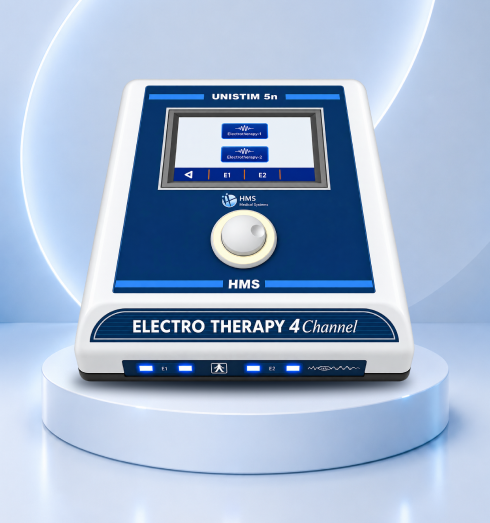

HMS UNISTIM 5N
HMS UNISTIM 5N is a reliable interferential therapy unit designed to support effective physiotherapy treatments. Its practical design and easy controls make it suitable for everyday clinical use.
Sturdy Body
Safe Treatment
Clinical Use
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Adjustable Vacuum Pressure
Easy to Adjust
Low Noise & Vibration
Smooth and comfortable operation
RECOMMENDED

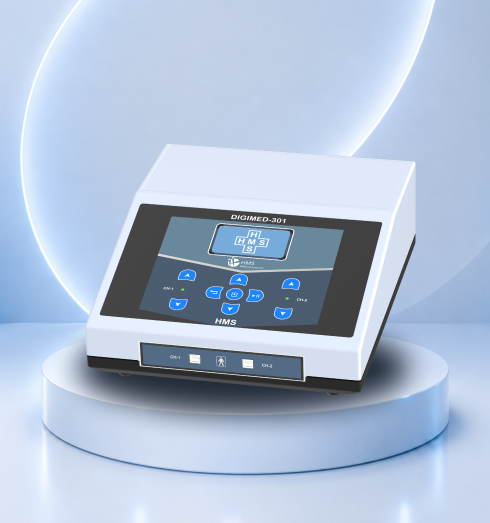

HMS DIGIMED 301
HMS DIGIMED 301 is a versatile interferential therapy unit designed for dependable physiotherapy applications. With practical controls and reliable performance, it supports convenient treatment in clinical settings.
Durable Build
Patient Safety
Easy Upkeep
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Adjustable Vacuum Pressure
Easy to Adjust
Low Noise & Vibration
Smooth and comfortable operation
RECOMMENDED

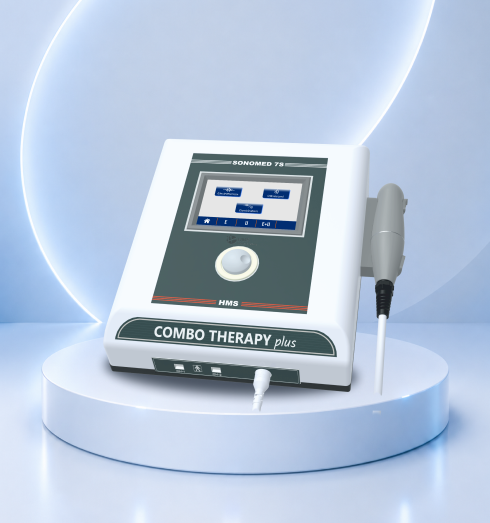

HMS SONOMED 7S
HMS SONOMED 7S is a combination therapy unit designed to support effective ultrasound and electrical therapy applications. Its practical design offers flexibility and convenience for physiotherapy treatments.
Robust Design
Safe Treatment
Clinical Use
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Adjustable Vacuum Pressure
Easy to Adjust
Low Noise & Vibration
Smooth and comfortable operation
RECOMMENDED
HMS SONOMED 9S
HMS SONOMED 9S combines ultrasound and electrical therapy in one practical physiotherapy system. Designed for reliable clinical performance, it provides convenient operation across different treatment applications.
Strong Build
Patient Safety
Easy Upkeep
Frequently bought together
Explore products that match your needs. Built for performance and reliability.
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Flexible Positioning
Remote-controlled height and tilt adjustment
Strong Table Support
Smooth and comfortable operation
RECOMMENDED
HIGH-LOW 3 FOLD TRACTION TABLE
HMS High-Low 3 Fold Traction Table is designed for comfortable traction treatment with full height adjustment and movable table sections. Its practical design supports convenient positioning for both patient and therapist.
250 Kg Load Capacity
Height Adjustable
Lockable Sliding Section
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Multiple Treatment Options
Back, neck, hip, knee and carpal traction
Patient Comfort
Adjustable height, arm rests and stabilization
RECOMMENDED
SPINETRAC®
HMS SPINETRAC® is a spinal decompression therapy system designed for controlled traction and rehabilitation. Its adjustable table and multiple treatment positions provide flexibility for different clinical applications.
Supine & Prone Use
Adjustable Pelvic Tilt
Lower Operating Cost
Product Enquiry
Fill in the form below and we’ll be in touch within 2–3 business days.
Model Comparison of HMS Traction Machines
| PARAMETERS | INDOTRAC® D | DIGITRAC® 101 |
|---|---|---|
| Therapy type Continuous & Intermittent | [yes] | [yes] |
| Traction force | 3 – 60 Kgs (120Kg with doubler) | 3 – 90 Kgs |
| Hold time | 10 – 80 sec (5 sec step) | 1 – 99 sec (1 sec step) |
| Rest time | 1 – 20 sec (1 sec step) | 1 – 99 sec (1 sec step) |
| Timer | 0 – 99 min | 1 – 99 min (1 sec step) |
| Traction speed | [no] | 5 speed |
| Traction mode | Cervical & Pelvic | Cervical & Lumber |
| Base force | [no] | 2 – 85Kgs (1 Kg step) |
| Progressive step | [no] | 1 – 10 step (max.) |
| Memory | [no] | 30 |
| Display | 16 x 2 LCD | 128 x 64 LCD |
