Traction Machines
INDOTRAC D
INDOTRAC® D is a solid-state electronic traction machine with static and intermittent modes for cervical and lumbar (pelvic) traction. With traction force from 3 to 60 kg (1 kg steps, expandable to 120 kg with doubler), 2-speed selection (1 kg/sec and 3 kg/sec), user-defined hold, rest and treatment time, LCD display of all parameters including real-time actual force, patient safety switch and a moulded aluminium gearbox with metal gears, it provides reliable daily traction capability at 9 kg. Designed for clinics that need a straightforward, durable electronic traction unit without progressive stepping or multi-mode complexity.
Static & Intermittent Modes
3–60 kg Force (120 kg with Doubler)
2-Speed Selection
Real-Time Force Display
Patient Safety Switch
IEC 60601-1 Certified
Core Traction with Durable Gearbox Construction
INDOTRAC® D provides static and intermittent cervical/lumbar traction with 3–60 kg force, aluminium gearbox, real-time force display and patient safety switch — the most durable, straightforward traction unit in the HMS range at 9 kg.
3–60 kg Force — Expandable to 120 kg with Doubler
Traction force adjustable from 3 to 60 kg in 1 kg steps. An optional doubler expands the force range to 120 kg for heavier lumbar traction applications. Base force adjustable from 0 to 55 kg. Supports both cervical and lumbar (pelvic) traction with separate tension controls for each mode.
Static & Intermittent Traction Modes
Two traction modes: static (continuous) and intermittent (cyclic hold/rest). Hold time adjustable from 10 to 80 seconds in 5-second steps. Rest time from 1 to 20 seconds in 1-second steps. Treatment timer from 0 to 99 minutes. This focused two-mode design covers essential traction patterns without the multi-mode complexity of the DIGITRAC® models.
2-Speed Selection
Two traction speed settings — Speed 1 (1 kg/sec) for gradual force application and Speed 2 (3 kg/sec) for faster loading. Two-speed selection keeps operation simple while providing options for different patient tolerance levels and traction approaches.
Real-Time Actual Force Display
The 16 × 2 LCD display shows all set parameters and displays the actual applied traction force in real time during treatment. Real-time force feedback lets clinicians verify that the set force is being delivered accurately throughout the session.
Patient Safety Switch
A dedicated patient safety switch allows the patient to release traction force immediately if discomfort or an emergency occurs during treatment. This direct patient-controlled safety feature supplements the clinician’s monitoring.
9 kg with Aluminium Gearbox & Metal Gears
Moulded aluminium gearbox with metal gears provides long equipment life under constant daily use. Silent, smooth heavy-duty DC motor. Unit weighs 9 kg at 27.5 × 30 × 27.5 cm. Power consumption: 20 watts max. Universal mains (100–240V, 50/60 Hz). IEC 60601-1 (Class 1, Type B). Manufactured by HMS Medical Systems.
Engineered for Excellence
Explore the key features, technical specifications, and applications designed to deliver reliability, efficiency, and versatility across a wide range of treatments.
- Static and Intermittent mode,
- Cervical and Lumbar traction.
- Two speed selections.
- High force and Low force can be set.
- 1 Kg step force setting.
- Wide input voltage range.
- User defined Hold, Rest and Treatment time.
- LCD display for all parameters.
- Actual force displayed in real time.
- Reliable, durable heavy-duty DC motor.
- Patient safety switch.
- Silent operation.
- Model : INDOTRAC D
- Operation Mode : Electrical
- Usage : Clinical, Hospital, Personal
- Traction force : 3Kg to 60Kg (1Kg step)
- Base force : 0Kg to 55 Kg (1 Kg step)
- Traction mode : Cervical and Lumbar
- Treatment time : 01 to 99 min (1 min step)
- Hold time : 01 to 99 sec (1 sec step)
- Rest time : 01 to 99 sec (1 sec step)
- Traction speed : Speed 1 (1kg/sec), Speed 2 (3kg/sec)
- Input Voltage : 100 to 240 VAC 50/60Hz
- Electrical class : Class 1 Type B (lEC60601-1)
- Power consumption : 20 Watts (max)
- Dimension (LxWxH) : 275mm x 300 mm x 275 mm
- Weight : 9 Kgs
Frequently bought together
Explore products that match your needs. Built for performance and reliability.
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Four-Fold Design
Flexible positioning with adjustable sections
Stable Construction
Powder-coated MS frame with cushioned top
RECOMMENDED

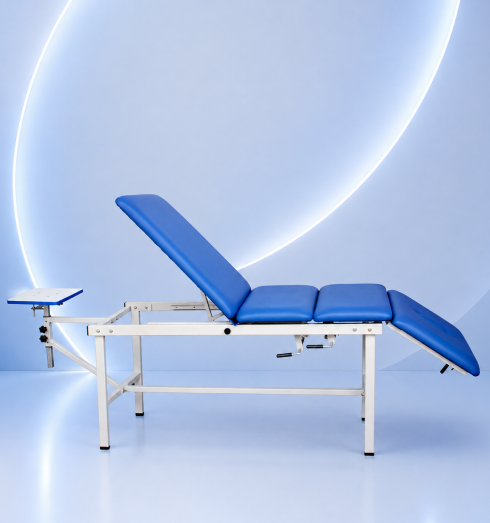

TRACTION TABLE 4 FOLD SECTION
HMS Traction Table 4 Fold Section features a four-fold design with pelvic traction sliding and adjustable sections. It provides a stable and comfortable platform for traction and physiotherapy treatment.
Four Fold Section
Adjustable Traction
Resin Covered Cushion
Why we suggest this
A reliable vacuum therapy solution designed for effective electrotherapy support. DIGIVAC combines adjustable vacuum pressure, continuous and pulsed output, and user-friendly operation for dependable clinical use.
Smooth Lumbar Movement
Non-friction rolling lumbar section
Practical Design
Height-adjustable traction fittings
RECOMMENDED

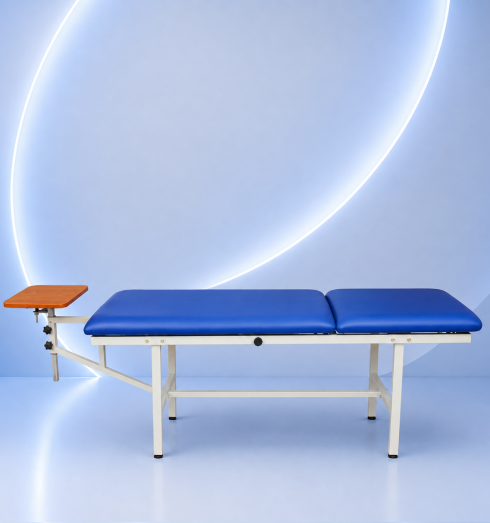

TRACTION TABLE – 2 SPLIT
HMS Traction Table 2 Split is a sturdy two-section traction table with a non-friction rolling lumbar section. Adjustable traction fittings provide practical positioning for physiotherapy treatment.
Two Section Table
Coated MS Frame
Resin Covered Cushion
₹19,850.00 (excl. GST) + shipping chargesRead more
Product Enquiry
Fill in the form below and we’ll be in touch within 2–3 business days.
Model Comparison of HMS Traction Machines
| PARAMETERS | INDOTRAC® D | DIGITRAC® 101 |
|---|---|---|
| Therapy type Continuous & Intermittent | [yes] | [yes] |
| Traction force | 3 – 60 Kgs (120Kg with doubler) | 3 – 90 Kgs |
| Hold time | 10 – 80 sec (5 sec step) | 1 – 99 sec (1 sec step) |
| Rest time | 1 – 20 sec (1 sec step) | 1 – 99 sec (1 sec step) |
| Timer | 0 – 99 min | 1 – 99 min (1 sec step) |
| Traction speed | [no] | 5 speed |
| Traction mode | Cervical & Pelvic | Cervical & Lumber |
| Base force | [no] | 2 – 85Kgs (1 Kg step) |
| Progressive step | [no] | 1 – 10 step (max.) |
| Memory | [no] | 30 |
| Display | 16 x 2 LCD | 128 x 64 LCD |
