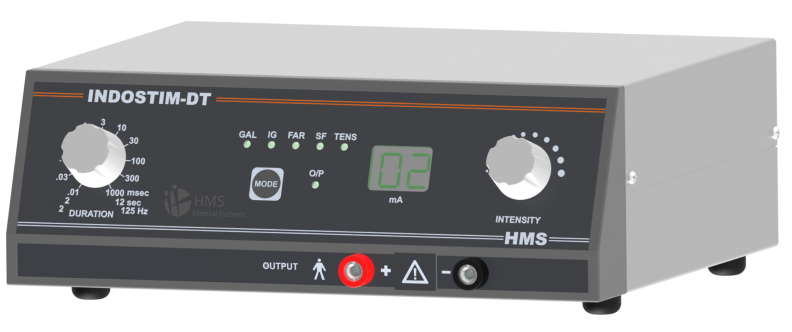

INDOSTIM DT

5 Operating Modes (G/IG/F/SF/TENS)

Constant Current Output

Audio-Visual IG Buzzer

Separate IG & SF Controls

0–40 mA Output

IEC 60601-1 Certified

Precision Ultrasound Therapy, Redefined

Advanced 1 & 3 MHz ultrasound system with smart contact control, touchscreen interface, and customizable therapy programs for safe, effective, and modern rehabilitation.

Diagnostic Muscle Stimulation with Dedicated Controls

INDOSTIM® DT focuses on core muscle stimulation and TENS through five operating modes with constant current output, separate IG and SF controls, and an audio-visual IG pulse indicator — a direct-control approach for clinicians who prefer dedicated hardware controls over menu-driven interfaces.

5 Operating Modes — G / IG / F / SF / TENS

Covers Galvanic (continuous DC current), Interrupted Galvanic (variable pulse duration across 11 diagnostic steps: 0.1, 0.3, 0.1, 0.3, 1, 3, 10, 30, 100, 300 and 1000 mSec with fixed 1-second OFF time), Faradic (50 Hz / 0.7 mSec), Surge Faradic (ON time 2–12 sec in 1-sec steps, OFF time fixed at 2 sec) and TENS (10 fixed frequency steps from 2–125 Hz, 100 µsec pulse width).

Constant Current Output — 0–40 mA

Delivers constant current output across all five modes, maintaining the set intensity level regardless of changes in skin or electrode resistance during treatment. Output range of 0–40 mA provides sufficient stimulation for diagnostic IG testing, therapeutic muscle stimulation and TENS applications in a single-channel configuration.

Audio-Visual IG Pulse Indicator

A built-in buzzer sounds with each interrupted galvanic pulse, providing audible confirmation of pulse timing and delivery. Combined with a visual LED indicator, this dual-feedback system allows physiotherapists to monitor IG output in real time during diagnostic pulse testing — particularly useful when attention is focused on observing the patient’s muscle response rather than the equipment display.

Separate Controls for IG Duration & SF Interval

IG pulse duration and surge faradic interval are adjusted through separate, dedicated controls rather than shared menu navigation. This independent control layout allows physiotherapists to set and modify IG and SF parameters quickly and directly — without accidentally changing one parameter while adjusting the other.

TENS with 10 Fixed Frequency Steps

TENS mode operates at 10 pre-set frequency steps — 2, 5, 10, 20, 30, 50, 60, 80, 100 and 125 Hz — with a fixed pulse width of 100 µsec. The stepped frequency selection provides quick access to commonly used TENS frequencies without requiring fine-adjustment through a continuous range.

Compact Build & LED Display

Housed in a compact cabinet measuring 17 × 28.5 × 9 cm and weighing 1.6 kg. LED display provides clear indication of active mode and output status. Microcontroller-based circuitry manages all output and safety functions. Universal mains input (100–240V, 50/60 Hz). Certified to IEC 60601-1 (Class I, Type BF). Manufactured by HMS Medical Systems.

Engineered for Performance

Key features of INDOSTIM DT from multi-modality output and channel independence to display, safety and build quality.

Features
  • Continuous galvanic current
  • Constant current output
  • Interrupted galvanic with variable pulse duration
  • Surge variation in seconds
  • Light Weight and compact.
  • Buzzer for IG pulse
  • Model : INDOSTIM DT
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal
Specifications
  • Mode Of Operation – G/IG/FSF/TENS
  • Current Output – 0 – 40 mA
  • IG Pulse duration – 0.1, 0.3, 1, 3, 10, 30, 100, 300, 1000 mSec
  • IG Pulse off time – 1 sec (fixed)

Faradic

  • Frequency / P.width – 50 Hz / .7 mSec
  • Surge on time – 2-12 sec (1 Sec step)
  • Surge Off time – 2 sec (fixed)

Tens

  • Tens frequency – 2, 5, 10, 20, 30, 50, 60, 80, 100, 125Hz
  • Tens Pulse width – 100 µsec
Technical Data
  • Mains Voltage – 100 – 240V, 50 / 60 Hz
  • Safety class – Class I, Type BF (IEC 60601-1)
  • Dimensions L x B x H – 17 x 28.5 x 9 cm
  • Weight – 1.6 kgs

Accessories for INDOSTIM DT

Genuine accessories designed to ensure optimal performance. hygiene and durability.

Stim Cable Set

Stim Cable Set

Replacement stimulator cable set with secure pin connectors for HMS muscle stimulator units.

Small Rubber Electrode hole (4 mm)

Small Rubber Electrode hole (4 mm)

Compact reusable carbon rubber electrode with 4 mm connector hole for smaller treatment areas.

Small Pouch electrode hole (4 mm)

Small fabric pouch electrode cover with 4 mm connector, used with sponge for moist electrode contact.

Stim Strap

Stim Strap

Elastic fixation strap for securing muscle stimulator electrodes during treatment sessions.

Big Pen Handle with Electrode Set (4 mm)

Big Pen Handle with Electrode Set (4 mm)

Full-size pen-style electrode handle with 4 mm pin connection and interchangeable tip set.

Frequently bought together

Box Trolly

HMS Box trolley

HMS Box Trolley is strong and durable in construction, made using high quality metal materials. It features a powder coated MS frame that ensures long lasting performance and easy maintenance. Designed for smooth movement, the trolley is fitted with caster wheels with brake support for safety and stability. The box trolley is detachable for convenient shipping and storage. It comes with a closed accessories storage design that helps keep equipment organised and protected during use. Built to handle regular clinical and hospital requirements, the HMS Box Trolley offers reliable support and ease of handling in everyday operations.

HMS Box trolley
  • MS powder coated frame
  • Fitted with caster wheel with break
  • Detachable for shipping
  • Accessories storage is closed
  • Can withstand upto 15kgs
  • Trolley height 96cm
  • Tray length 52cm width 46cm
Model and Usage
  • Model : Box Type Trolley
  • Operation Mode : Manual
  • Usage : Clinical, Hospital, Persona

Product Enquiry

Fill in the form below and we’ll be in touch within 2–3 business days.

    Our Range of Muscle Stimulator Machines

    Explore the complete HMS range of Muscle Stimulator Machines and electrotherapy equipment — from portable pocket devices to advanced multi-channel clinical systems.

    DIGISTIM
    DIGISTIM 202
    INDOSTIM 201
    DIGISTIM EMS+T
    WALKSTIM
    WALKSTIM

    Model Comparison of HMS Muscle Stimulator Machines

    PARAMETERSDIGISTIM® 202DIGISTIM®INDOSTIM® DTINDOSTIM® 201DIGISTIM® EMS+T
    Plain galvanic[yes][yes][yes][yes][yes]
    No. of channels2 Independent111One
    IG (sec)T – 30-300 D – 01-300 (11 steps)T – 30-300 D – 01-300 (11 steps)30 – 300 (11 steps)30 – 300IG On Time: 30 – 150 ms. IG Off Time: 1 Sec.
    Faradic[yes][yes][yes][yes] 50Hz / 0.7ms50Hz/0.7ms
    Surge faradic ON time1 – 10 sec1 – 10 sec2 – 12 sec (1 Sec step)1 – 6 sec1 – 6 Sec
    Surge faradic OFF time1 – 10 sec1 – 10 sec2 sec (fixed)1 – 6 sec[no]
    TENS[yes][yes][yes][no]2 – 125Hz
    TENS Burst[no][no][no][no][no]
    FES[yes][no][no][no][no]
    Timer[yes][yes][no][no][no]
    Power sourceMains (100 – 240V)Mains (100 – 240V)Mains (100 – 240V)Mains (100 – 240V)9V adapter , 9V battery
    Dia-dynamic[yes][no][no][no][no]
    Display128 x 64 LCD16 x 2 LCDLED–[no]
    Output current[no]0–50 mA0–40 mA0–40 mA0-40 mA
